L&T DY125U MCCB 80A 2 Pole 240V 25kA Thermal Magnetic | EM90812OOJO

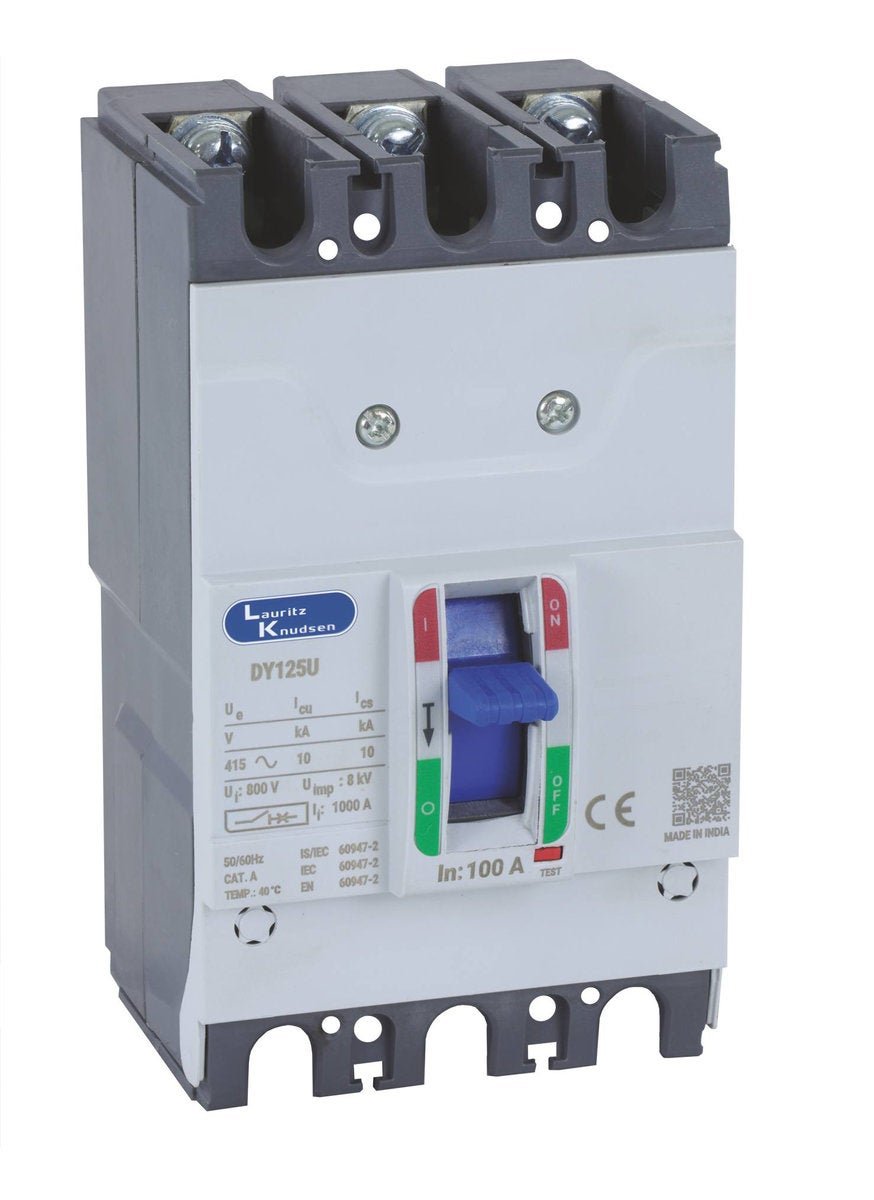

Note: the product photo is for illustration purpose only – it shows a different rating of the same model. The unit supplied is exactly the catalog number and rating on this page.

Looking for the L&T DY125U MCCB 80A 2 Pole? This is the genuine Lauritz Knudsen (formerly L&T Switchgear) DY series moulded case circuit breaker, catalog number EM90812OOJO, made for feeder and sub-distribution protection in shops, small industries, commercial buildings and OEM panels. We stock it at our Chamrajpet shop in Bengaluru with a GST invoice on every order, same-day dispatch for orders placed before 4 PM (Monday to Saturday), and delivery across all of Bengaluru including outskirts. Free store pickup is available. For project and bulk rates, WhatsApp us on +91 78160 62494.

The DY125U 2 Pole is built in the 3 pole frame size (75 mm width), so it matches the full DY125U accessory range. This catalog number EM90812OOJO is the variant spreader terminals not included. Phase barriers are supplied with the unit. The fixed thermal-magnetic release needs no settings or commissioning: overload protection is thermal and short-circuit protection trips magnetically at 10 times the rated current.

Breaking capacity is 25 kA at 240V AC (Ics = 100% of Icu) – the 2 pole DY125U is rated for 240V AC systems, with 10 kA at 250V DC when both poles are wired in series. If your installation is a 415V three-phase board, use the 3 pole or 4 pole DY125U instead, and where the fault level exceeds these values, look at the DU range (18-50 kA) or the dsine DN range – we stock those too.

Practical panel-builder details: no load-line bias, so supply and load can connect to either side; clear ON / TRIP / OFF indication; suitable for isolation; conforms to IS/IEC 60947-2, IEC 60947-2 and EN 60947-2. The whole DY125U family covers 16A to 125A in 2, 3 and 4 pole versions.

Note on branding: L&T Switchgear is now Lauritz Knudsen Electrical & Automation (renamed in May 2024). Depending on stock, the unit may carry either the L&T or Lauritz Knudsen name. The catalog number, specifications and quality are identical.

📋 Technical Specifications

⚡ Key Features

• Genuine L&T / Lauritz Knudsen DY125U economy-range MCCB – catalog no. EM90812OOJO
• 80A, 2 Pole (3 pole frame size), 240V AC, 25 kA breaking capacity (Icu = Ics)
• Fixed thermal-magnetic release – no settings needed, works out of the box
• Phase barriers included; spreader terminals available separately below
• No load-line bias – connect supply and load on either side
• Clear ON / TRIP / OFF indication; suitable for isolation
• GST invoice on every order; same-day dispatch in Bengaluru for orders before 4 PM

📄 Official Catalogue / Datasheet

Download the official L&T / Lauritz Knudsen DU/DY MCCB catalogue (covers DY125U technical data, trip curves, accessories and dimensions): DU/DY MCCB Catalogue (PDF, official)
