L&T DN1-250C MCCB 200A (160-200A) 3 Pole 25kA Thermal Magnetic | CM90638OONO

Name: L&T DN1-250C MCCB 200A 3P CM90638OONO - Manibhadra Enterprises
Brand: L&T
SKU: CM90638OONO
Price: 12366.40 INR
Availability: InStock

₹12,366.40 Incl. of Taxes -60%Original price was: ₹26200.00.Current price is: ₹10480.00.+ GST ₹1,886.40 (18%)

+ GST (18%): ₹1886.40
Total payable: ₹12366.40

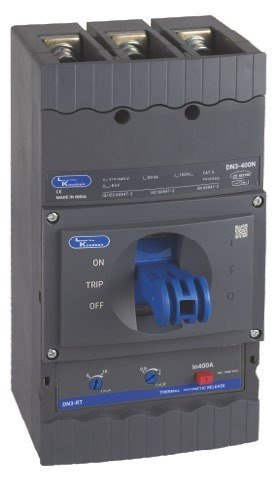

Product image is for illustration purpose only – the photo shows a different rating of the same dsine family.
L&T / Lauritz Knudsen dsine DN1-250C MCCB, catalog no. CM90638OONO
200A (160-200A), 3 Pole, 25kA @ 415V AC breaking capacity (Ics = 50% of Icu)
Adjustable thermal 0.8-1.0 x In, fixed magnetic
GST invoice on every order | Same-day dispatch in Bengaluru for orders before 4 PM
Bulk and project rates on WhatsApp: +91 78160 62494

Order on Whatsapp

Add to wishlist

SKU: CM90638OONO Categories: L&T MCCB, MCCB Tag: 3 Pole

Description
Additional information

Description

Note: the product photo is for illustration purpose only – it shows a different rating of the same dsine family. The unit supplied is exactly the catalog number and rating on this page.

Looking for the L&T DN1-250C MCCB 200A 3 Pole? This is the genuine Lauritz Knudsen (formerly L&T Switchgear) dsine DN series moulded case circuit breaker, catalog number CM90638OONO, made for feeder, incomer and sub-distribution protection in commercial buildings, industries and OEM panels. We stock it at our Chamrajpet shop in Bengaluru with a GST invoice on every order, same-day dispatch for orders placed before 4 PM (Monday to Saturday), and delivery across all of Bengaluru including outskirts. Free store pickup is available. For project and bulk rates, WhatsApp us on +91 78160 62494.

Breaking capacity is 25 kA at 415V AC (Ics = 50% of Icu). The dsine DN range gives you a thermal-magnetic release with an adjustable thermal (overload) setting from 0.8 to 1.0 times In – this unit covers 200A (160-200A) – and a fixed magnetic short-circuit trip at 9 times In (1800A on this 200A unit). That adjustability lets you trim the protection to the actual load and cable size during commissioning.

Spreader terminals are not included with this catalog number – if your panel needs them for cable termination, add the matching DN1-250 3 pole spreader link set and, for panel-door operation, the direct or extended rotary handle from the Frequently Bought Together section below. One set covers one MCCB. Phase barriers are supplied with the unit.

Practical panel-builder details: no load-line bias, so supply and load can connect to either side; clear ON / TRIP / OFF indication; suitable for isolation; conforms to IS/IEC 60947-2.

Note on branding: L&T Switchgear is now Lauritz Knudsen Electrical & Automation (renamed in May 2024). Depending on stock, the unit may carry either the L&T or Lauritz Knudsen name. The catalog number, specifications and quality are identical.

📋 Technical Specifications

Parameter	Value
Brand	L&T / Lauritz Knudsen
Part Number / SKU	CM90638OONO
Category	MCCB (Moulded Case Circuit Breaker)
Series	dsine DN1-250C
Current Rating (In)	200 A (adjustable range 200A (160-200A))
Poles	3 Pole
Breaking Capacity (Icu)	25 kA @ 415V AC (Icu @ 415V AC)
Service Breaking Capacity (Ics)	50% of Icu
Release Type	Thermal-Magnetic (adjustable thermal, fixed magnetic)
Thermal (Overload) Setting	Adjustable 0.8 – 1.0 x In (this unit settable 200A (160-200A))
Magnetic (Short Circuit) Setting	Fixed magnetic, 9 x In (1800 A for this 200A unit)
Rated Operational Voltage (Ue)	600V AC, 50/60 Hz
Rated Insulation Voltage (Ui)	800 V
Impulse Withstand Voltage (Uimp)	8 kV
Utilization Category	A
Standard	IS/IEC 60947-2
Making Capacity (Icm)	52.5 kA
Mechanical / Electrical Life	15,000 / 4,000 operations
Dimensions (W x D x H)	105 x 60 x 165 mm
Weight	1.55 kg
IP Rating / Isolation	IP40 (front), suitable for isolation

⚡ Key Features

Genuine L&T / Lauritz Knudsen dsine DN1-250C MCCB – catalog no. CM90638OONO
200A, 3 Pole, 25 kA breaking capacity at 415V AC (Ics = 50% of Icu)
Adjustable thermal release 0.8 – 1.0 x In; fixed magnetic trip
Phase barriers included; spreader terminals and rotary handles available separately below
No load-line bias – connect supply and load on either side
Clear ON / TRIP / OFF indication; suitable for isolation
GST invoice on every order; same-day dispatch in Bengaluru for orders before 4 PM

📄 Official Catalogue / Datasheet

Download the official L&T / Lauritz Knudsen dsine DN MCCB catalogue (covers DN1-250C technical data, trip curves, accessories and dimensions): dsine DN MCCB Catalogue (PDF, official)

❓ Frequently Asked Questions

Where can I use a 25 kA MCCB like the DN1-250C?

Use it where the prospective short-circuit level at the installation point is 25 kA or less – typically incomers and feeders in commercial and industrial distribution boards. Your panel designer or electrician works this out from the upstream transformer rating. The dsine DN range covers 25 kA, 36 kA and 50 kA variants – if you need a different fault level, ask us on WhatsApp and we will point you to the right catalog number.

Can I adjust the trip settings on this MCCB?

Partly – the DN1-250C has an adjustable thermal (overload) dial from 0.8 to 1.0 times In, so this 200A unit can be set anywhere in the 200A (160-200A) range. The magnetic short-circuit trip is fixed at 9 times the rated current (1800A on this unit). If you need fully adjustable electronic settings, look at the DN range with MTX microprocessor releases.

Are spreader terminals included with this MCCB?

No – CM90638OONO is the without-spreader variant, which keeps the price lower. If your panel needs spreader terminals for 3 pole cable termination, add the matching DN1-250 3 pole spreader link set from the Frequently Bought Together section below – one set covers one MCCB.

How fast can you deliver in Bengaluru?

Orders placed before 4 PM, Monday to Saturday, are dispatched the same day. We deliver across all of Bengaluru including outskirts like Sarjapur, Anekal and the airport side. Delivery charges are confirmed with you before dispatch. You can also pick up free from our Chamrajpet shop.

Do I get a GST invoice and what are the payment options?

Every order comes with a GST invoice suitable for ITC claims and project billing. Payment is prepaid through PhonePe – UPI, cards and netbanking are all accepted. For bulk quantities and project rates, WhatsApp us on +91 78160 62494.
